High Tensile Stainless Steel D Shackles
High Tensile Stainless Steel D Shackles
Product Features
- Manufactured from 17/4PH precipitation hardening martensitic stainless steel
- Excellent for general lifting applications - high tensile properties while avoiding work hardening
- Corrosion resistance similar to 18/8 grade steels
- Factor of Safety
- Available with 4 pin types - Standard Screw Collar Pin (A Type), Extended Screw
- Collar Pin (AL Type), Countersunk Head (B Type), E Type Safety Pin (E Type)
- Manufactured using the latest technology in electrical upset forging
Quality Features
- Every shackle is proof tested and certified at our manufacturing facility
- High quality finish and excellent polish
Typical Applications
- General lifting in off-shore applications
- General lifting and tethering in leisure marine applications
- General lifting purposes

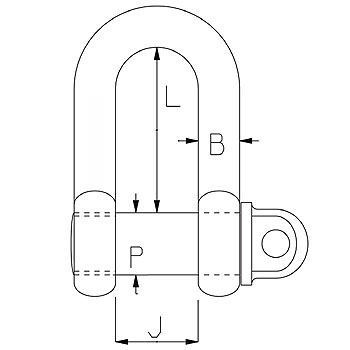

| Dimensions & WLL | Pin Styles & Product Numbers | Nominal Weight Per Shackle |
||||||||
| WLL (t) | Pin Dia (P) |
Body Dia (B) |
Jaw Gap (J) |
Inside L | A Type Pin | AL Type Pin | B Type Pin | E Type Pin | E Type Pin c/w Nylok |
|
1.0 |
10.0 |
8.0 |
16.0 |
32.0 |
PH1TA |
PH1TAL |
PH1TB |
PH1TE |
PH1TE-NY |
85g |
2.0 |
12.7 |
10.0 |
20.0 |
40.0 |
PH2TA |
PH2TAL |
PH2TB |
PH2TB |
PH2TE-NY |
150g |
3.0 |
16.0 |
12.7 |
25.0 |
50.0 |
PH3TA |
PH3TAL |
PH3TB |
PH3TB |
PH3TE-NY |
350g |
5.0 |
19.0 |
16.0 |
32.0 |
64.0 |
PH5TA |
PH5TAL |
PH5TB |
PH5TB |
PH5TE-NY |
550g |
7.0 |
22.2 |
19.0 |
38.0 |
76.0 |
PH7TA |
PH7TAL |
PH7TB |
PH7TB |
PH7TE-NY |
1000g |
9.0 |
25.4 |
22.2 |
44.0 |
88.0 |
PH9TA |
PH9TAL |
PH9TB |
PH9TB |
PH9TE-NY |
1900g |
11.0 |
28.6 |
25.4 |
51.0 |
102.0 |
PH11TA |
PH11TAL |
PH11TB |
PH11TB |
PH11TE-NY |
2900g |
13.0 |
31.8 |
28.6 |
57.0 |
114.0 |
PH13TA |
PH13TAL |
PH13TB |
PH13TB |
PH13TE-NY |
3100g |
15.0 |
34.9 |
31.8 |
64.0 |
128.0 |
PH15TA |
PH15TAL |
PH15TB |
PH15TB |
PH15TE-NY |
4350g |
18.0 |
38.0 |
34.9 |
70.0 |
140.0 |
PH18TA |
PH18TAL |
PH18TB |
PH18TB |
PH18TE-NY |
5300g |
