Chain Link D Shackles
Chain Link D Shackles
Product Features
Manufactured from Stainless Steel (Grade 316L) Excellent for lifting applications where a high level of corrosion resistance is required Factor of Safety
Unique design enabling the shackle to be made captive to a chain sling without the need for welding.

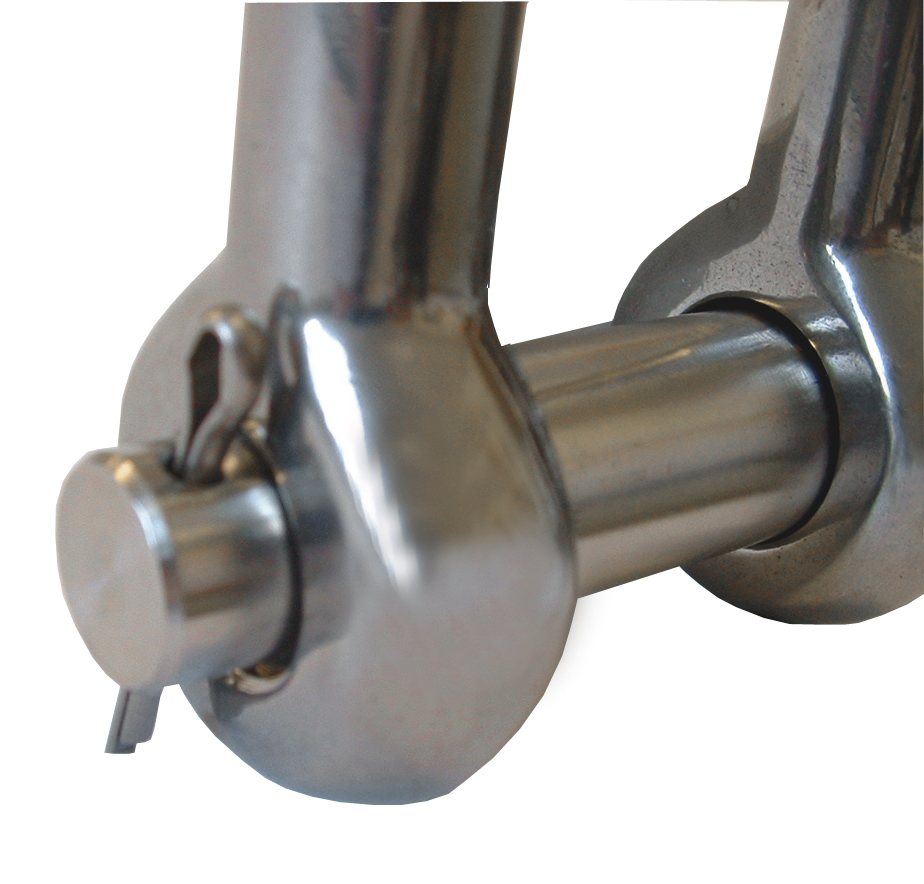

The special Brace pin allows the shackle to be permanently attached to the chain on-site. This results in the shackle becoming part of the chain assembly The extended load pin is fitted with a split pin to ensure that the load pin remains in position even under vibration
Typical Applications
- Water utility installations & other corrosive facilities
- Pump chains and pump lifting
Quality Features
- Every shackle is proof tested and certified at our manufacturing facility
- High quality finish and excellent polish

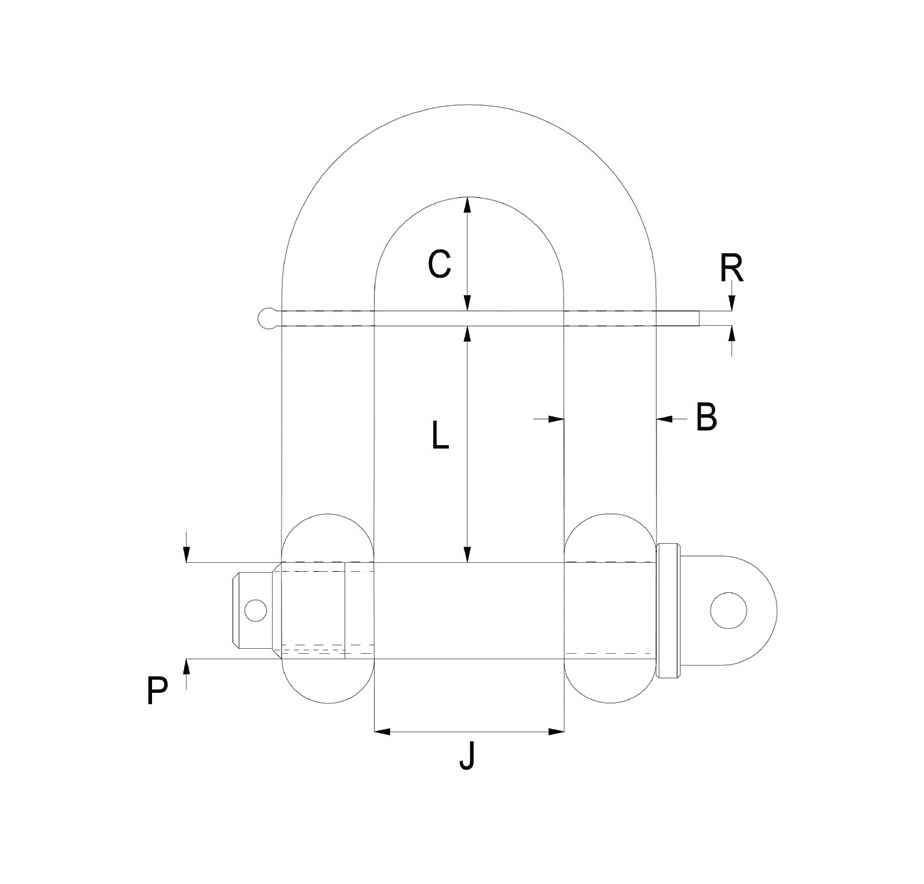

Dimensions & WLL |
Product Number |
Nominal Weight |
||||||
WLL (t) |
Pin Dia (P) |
Boday Dia (B) |
Jaw Gap (J) |
Inside L |
R |
C |
||
1 |
12.5 |
9.5 |
20.0 |
25.0 |
2.0 |
15.0 |
CTS1T |
150g |
2 |
19.0 |
16.0 |
32.0 |
40.0 |
3.0 |
22.0 |
CTS2T |
55g |
3.2 |
22.0 |
19.0 |
38.0 |
45.0 |
4.0 |
28.0 |
CTS32T |
1000g |
5 |
25.0 |
22.0 |
44.0 |
55.0 |
4.0 |
29.0 |
CTS5T |
1900g |
6 |
28.0 |
25.0 |
51.0 |
65.0 |
4.0 |
34.0 |
CTS6T |
2300g |
